Mahdizadeh M, Arab-Bafrani Z, Jafari S M. Changes in Claudin-4 expression and tight junction integrity in human esophageal cancer: A Systematic Review. Jorjani Biomed J 2024; 12 (2) :1-3
URL: http://goums.ac.ir/jorjanijournal/article-1-1041-en.html
URL: http://goums.ac.ir/jorjanijournal/article-1-1041-en.html
1- Metabolic Disorders Research Center, Golestan University of Medical Sciences, Gorgan, Iran; Department of Biochemistry and Biophysics, School of Medicine, Golestan University of Medical Sciences, Gorgan, Iran
2- Metabolic Disorders Research Center, Golestan University of Medical Sciences, Gorgan, Iran; Department of Biochemistry and Biophysics, School of Medicine, Golestan University of Medical Sciences, Gorgan, Iran ,s.meh.jafari@gmail.com
2- Metabolic Disorders Research Center, Golestan University of Medical Sciences, Gorgan, Iran; Department of Biochemistry and Biophysics, School of Medicine, Golestan University of Medical Sciences, Gorgan, Iran ,
Keywords: CLDN-4, Adenocarcinoma of esophagus, Esophageal Squamous Cell Carcinoma, Esophageal neoplasms, Gene expression
Full-Text [PDF 405 kb]
(555 Downloads)
| Abstract (HTML) (2076 Views)
Discussion
Esophageal cancer has the 7th highest incidence rate and the 6th highest mortality rate among cancers, and there were about 544,000 deaths related to esophageal cancer in 2020. Despite the useful advances in drug treatment and surgical methods, the survival rate of patients is less than 25% (18). These statistics point to the need for more studies to understand the exact mechanism of this disease. Claudins as important members of TJ, are involved in maintaining epithelial cells in a polarized state (19). One of the members of this family is CLDN-4, whose expression changes have been reported in various cancers. Studies have been published so far to clarify the role of CLDN-4 in the progression of esophageal cancer, the pattern of CLDN-4 changes level, and the effect of various factors and genes on CLDN-4.
In normal squamous epithelium, Sung et al. observed strong CLDN-4 staining in cell-to-cell (IS; mean, 8.0 ± 2.739); however, cytoplasmic and nuclear staining was not observed. Staining in tumor samples was mainly membranous and 122 samples out of 164 patients had membrane staining (Mean IS, 2.533 ± 3.5). In general, immunoreactivity scores of CLDN-4 in the patient group were significantly lower than normal cases (Respectively 2.533 ± 3.5, 8.0 ± 2.739) (P-Value <0.001). According to the obtained results, it can be seen that the expression of CLDN-4 in esophageal cancer cells was lower than in normal cells. Spearman correlation coefficient showed a moderate positive correlation between CLDN-4 mRNA expression level and immunoreactivity scores (Spearman correlation coefficient (q) = 0.480, P-Value = 0.028) (20).
In 2014, Shi and colleagues investigated the role of CLDN-4 as an indicator of recurrence in ESCC after Ivor Lewis esophagectomy. In 119 patients, the level of CLDN-4 was examined by immunohistochemistry. Forty samples showed positive expression and 79 samples showed negative expression of CLDN-4. In 40 patients with positive expression of CLDN-4 protein, the CLDN-4 mRNA level was higher than in the other 79 patients. It can be concluded that in this study, the level of CLDN-4 was downregulated in most of the patients. Regarding invasion depth, it was observed that T1 group patients had the highest relative expression of CLDN-4 mRNA (0.00286 ± 0.00230). The relative expression of CLDN-4 decreased in T2 (0.00213 ± 0.00131) and T3+T4a (0.00177 ± 0.00083) patients, respectively (P-Value =0.002). According to these results, the decrease in the level of CLDN-4 leads to an increase in the depth of invasion.
Patients with lymphatic metastasis had significantly (P-Value < 0.001) lower relative expression of CLDN-4 mRNA than patients without lymphatic metastasis (0.00183 ± 0.00104 and 0.00258 ± 0.00168, respectively). The Kaplan-Meier survival analysis showed that 3-year recurrence in patients with decreased expression of CLDN-4 was higher than in patients with increased expression of CLDN-4 (58.2 Vs. 35.0%, P-Value = 0.009). Moreover, 5-year survival in patients with decreased CLDN-4 expression was lower than in patients with increased CLDN-4 expression (52.5 Vs. 27.8%, P-Value = 0.006) (21). These conflicting results show the importance of further studies on the level of CLDN-4 and the survival rate of patients.
Takala et al. stated that positive staining for CLDN-4 in normal epithelium is rare and CLDN-4 reactivity in esophageal cancer is more limited to the membrane. Immunohistochemical expression of CLDN-4 was observed in 47 out of 76 tumors. There was no significant correlation between CLDN-4 with tumor grade and tumor size and tumor T stage and metastasis (P-Value >0.05). They reported weak reactivity of CLDN-4 compared to CLDN-1 and CLDN-7 in esophageal tumors. In addition, CLDN-4 expression was higher in EAC samples than ESCC (42.1% and 18.9%, respectively). However, no significant difference was observed between strong and weak immunoreactivity of CLDN-4 in EAC and ESCC.
Apoptotic index in tumor samples with moderate and strong expression of CLDN-4 were significantly higher than samples with weak expression (2.22% ± 2.43 and 0.93% ± 0.95, respectively) (P-Value =0.026). Also, the number of caspases 3 was significantly higher in tumor samples with medium and strong expression of CLDN-4 than in samples with weak expression (4.51±5.08%, 2.81±2.34%) (P-Value =0.047) (22). The presence of CLDN-4 in esophageal cancer cells, compared to its absence in cancer cells, strengthens the apoptosis pathway and the factors involved. WU et al. investigated CLDN-4 gene expression in A431, TE-10, TE-11, and TE-5 cell lines. In the TE11 cell line, CLDN-4 expression was reported to be relatively low and Podoplanin (A glycoprotein with the ability to promote metastasis in all types of cancers) expression was strong by reverse transcription-quantitative polymerase chain reaction method. In this study, a negative correlation was observed between Podoplanin and CLDN-4.
When the cell lines were treated with TGF-β, Podoplanin expression was strongly induced but CLDN-4 expression was reduced. By blocking TGF-β receptors, they observed an increase in CLDN-4 expression. To better determine the relationship between these epithelial markers (CLDN-4), Podoplanin was knocked down and the result was an increase in CLDN-4 expression (23). It can be concluded that there is an inverse relationship between the level of CLDN4 and TGF-β. The reduction of CLDN-4 as a protein that plays a role in creating tight junctions was observed in these cell lines. Toda et al. investigated the expression of the CLDN-4 gene before and after exposure to acetaldehyde (AaH) and ethanol (EtOH) in esophageal cancer tumors. CLDN-4 mRNA level in non-exposed ESCC samples was lower than in non-ESCC samples (P-Value < 0.05).
After exposure of ESCC samples to AcH and EtOH, the CLDN-4 mRNA level tended to decrease (P-Value >0.05). CLDN-4 mRNA level after exposure to AcH and EtOH was not significantly different between LVL grades (P-Value > 0.05) (24). In this way, the expression of CLDN-4 in ESCC samples before exposure was significantly lower than in healthy samples. Since the results obtained after contact with ethanol and acetaldehyde were not significant, more studies with a larger population are needed to clarify the relationship of these compounds with CLDN-4 in esophageal cancer. In 2012, Lee et al. investigated the relationship between Twist1 and CLDN-4 in esophageal cancer cell lines and 198 patients with ESCC. When the expression of Twist1 was increased using lentivirus infection in the TE8 cell line, it binds to the endogenous CLDN-4 promoter and reduces the expression of CLDN-4. Further, the results also showed a decrease in CLDN-4 protein levels.
To investigate the inhibitory effect of Twist1 in the tumor tissue of patients with esophageal cancer, they used immunohistochemistry. Nineteen patients who had Twist1 upregulation had lower CLDN-4 immunoreactivity scores. CLDN-4 immunoreactivity scores were significantly higher in 179 patients who had Twist1 downregulation. Immunostaining results show inverse correlation patterns for Twist1 and CLDN-4. A significant inverse correlation between Twist1 and CLDN-4 was determined by Fisher's exact test (P-Value =0.012). In the study of survival rate, the worst result significantly belonged to patients with low CLDN-4 and high Twist1 (25). So, in this study, 179 patients had higher CLDN-4 protein in the esophageal tumor tissue than 19 other patients. Twist1 can lead to the induction of cancer by inducing epithelial to mesenchymal transition, i.e. reducing epithelial characteristics and increasing mesenchymal characteristics. The results of this study were not consistent with this assumption and only 19 patients out of 179 patients had positive regulation of Twist1 and most patients had upregulation of CLDN-4. No risk of bias or applicability concern was found in the reference standard domain, and the flow and timing domain. Limitations of this systematic review, such as sample size and small number of studies including inclusion criteria, provide an opportunity for future clinical research to understand the role of CLDN-4 in esophageal cancer formation and progression.
Conclusion
The results obtained from the published studies regarding changes in CLDN-4 levels among esophageal cancer samples and also comparing it with normal tissue were contradictory. From the review of studies, it can be concluded that there is an inverse relationship between CLDN-4 and TGF-β levels, and more information is needed to clarify the effect of TGF-β signaling on CLDN-4. Also, an inverse relationship between CLDN-4 and Twist-1 levels has been observed. These conflicting results can be interpreted in several ways. Assuming that cell junctions are destroyed in the formation of tumors, we can expect a decrease in CLDN-4 in esophageal cancer samples, which has been mentioned in some studies. On the other hand, CLDN-4 can be involved in carcinogenesis by affecting different signaling pathways.
Acknowledgement
This study was supported by Golestan University of Medical Sciences by grant number 114252 and ethical code IR.GOUMS.REC.1403.249.
Funding sources
The authors declare that no funds, grants, or other support were received during the preparation of this manuscript.
Ethical statement
Not applicable.
Conflicts of interest
The authors declare that they have no competing interests.
Author contributions
Jafari and Arab designed the research and edited the manuscript. The search in databases was done by Jafari and Mahdizadeh. The manuscript was written by Mahdizadeh. All authors read and approved the final manuscript.
Full-Text: (308 Views)
Introduction
Esophageal cancer is the eighth most prevalent cancer globally (1). There are two main histological subtypes of esophageal carcinoma: esophageal adenocarcinoma (EAC), originating from the columnar epithelia of the esophagus, and esophageal squamous cell carcinoma (ESCC), originating from the stratified squamous epithelia of the esophageal mucosa (2,3). The location of the tumor in the esophagus is different in EAC and ESCC subtypes (4). The ESCC, especially takes place in the proximal two-thirds of the esophagus, while EAC specifically occurs in the distal third of the esophagus (4). More than 90% of esophageal cancers in the world are of ESCC type and this cancer is mostly seen in countries with poor economic status and low income (2). The ESCC is associated with a poor prognosis, and its diagnosis usually occurs in the advanced stages of the disease (5). The incidence of EAC in Western countries has been increasing in recent decades (1). Despite advances in treatment and surgical techniques, the 5-year survival rate for EAC is 20.2% and 22.8% for ESCC (1). Considering the low survival rate in esophageal cancer patients, it is necessary to recognize the mechanisms of esophageal tumor progression (6).
Epithelial and endothelial cells form a protective barrier in the tissue and participate in maintaining homeostasis (7). The protective barrier requires proteins, including tight junction proteins, to function properly (8). Tight junctions (TJ) play a role in intercellular communication and cell polarity, maintenance of intercellular space in the epidermis, paracellular transport, and overall tissue maintenance (7,9,10). Components of TJ regulate gene expression, cell migration, and cell apoptosis by affecting signaling pathways (11). Studies show that TJ, in addition to maintaining the barrier function, is effective in the formation of various cancers (11).
Claudin family (CLDN) is one of the important structural and functional components of TJ (12). CLDNs are a family consisting of 27 genes, and CLDN proteins weigh approximately 20-27 kDa. They cross the cell membrane four times and their C-terminal and N-terminal are located in the cytoplasm (7,13). CLDNs have essential functions such as the barrier and the fence function (14). Also, they regulate cell adhesion, and their dysfunction (Upregulation or downregulation) is observed in tumorigenesis and cell invasion of different cancers (7,12,13).
CLDN-4 is a member of the claudin family and its gene is expressed in all human tissues (7). Its N-terminal is short and its C-terminal is variable length in different species and has approximately 27 amino acids. The cell membrane is connected to parts of the cytoskeleton through the C-terminal of the CLDN-4 (15). CLDN-4, as a regulator of tight junctions, is involved in the development of cancer and the invasion and cancer cell metastasis (12). This systematic review aims to investigate CLDN-4 changes in esophageal cancer. We aimed to investigate the effect of changes in the CLDN-4 gene and protein expression on cancer cells’ growth by reviewing the available studies.
Methods
Eligibility criteria
Inclusion criteria for this systematic review are as follows: Examination of gene expression or examination of CLDN-4 protein in esophageal cancer cell lines and esophageal tumor (Mostly EAC and ESCC) samples as well as investigating the effect and relationship of different markers on the level of CLDN-4. Exclusion criteria consist of Barrett's esophagus, gastroesophageal adenocarcinoma, gastrointestinal cancer, methylation of the CLDN gene or its promoter, microarray data analysis, microarray data analysis, other CLDN family genes, review articles, articles that did not have relevant and extractable information, animal studies, and non-English language studies.
Information sources
A total of 202 studies were obtained from searching the databases (PubMed (n = 12), Scopus (n = 177), and Web of Science (n = 13)), and after removing duplicate articles, 176 articles remained.
Search strategy
The systematic search was performed on February 13, 2024, according to the Preferred Reporting Items for Systematic Reviews and Meta-analysis (PRISMA) statement. In this systematic review, the search language in the databases was English. Search strategy in PubMed: ("CLDN4"(Title/Abstract) OR "CLDN 4"(Title/Abstract) OR "CLDN-4"(Title/Abstract) OR "Claudin4"(Title/Abstract) OR "Claudin 4"(Title/Abstract) OR "Claudin-4"(Title/Abstract)) AND ("Esophageal cancer"(Title/Abstract) OR "Esophageal tumor"(Title/Abstract) OR "Esophageal neoplasm"(Title/Abstract) OR "Esophageal carcinoma"(Title/Abstract) OR "Esophageal malignant"(Title/Abstract) OR "Oesophageal cancer"(Title/Abstract) OR "Oesophageal tumor"(Title/Abstract) OR "Oesophageal neoplasm"(Title/Abstract) OR "Oesophageal carcinoma"(Title/Abstract) OR "Oesophageal malignant"(Title/Abstract) OR "Esophagus cancer"(Title/Abstract) OR "Esophagus tumor"(Title/Abstract) OR "Esophagus neoplasm"(Title/Abstract) OR "Esophagus carcinoma"(Title/Abstract) OR "Esophagus malignant"(Title/Abstract) OR "esophageal adenocarcinoma"(Title/Abstract) OR "esophageal squamous cell carcinoma"(Title/Abstract)). Search strategy in Scopus: (TITLE-ABS-KEY ( "cldn" OR "CLDN 4" OR "CLDN-4" OR "claudin" OR "Claudin 4" OR "Claudin-4" ) AND TITLE-ABS-KEY ("Esophageal cancer" OR "Esophageal tumor" OR "Esophageal neoplasm" OR "Esophageal carcinoma" OR "esophageal malignant" OR "Oesophageal cancer" OR "Oesophageal tumor" OR "Oesophageal neoplasm" OR "Oesophageal carcinoma" OR "oesophageal malignant" OR "Esophagus cancer" OR "Esophagus tumor" OR "Esophagus neoplasm" OR "Esophagus carcinoma" OR "esophagus malignant" OR "esophageal adenocarcinoma" OR "esophageal squamous cell carcinoma"). Search strategy in Wen of Science: “CLDN4” OR “CLDN 4” OR “CLDN-4” OR “Claudin4” OR “Claudin 4” OR “Claudin-4” (Topic) AND “Esophageal cancer” OR “Esophageal tumor” OR “Esophageal neoplasm” OR “Esophageal carcinoma” OR “Esophageal malignant” OR “Oesophageal cancer” OR “Oesophageal tumor” OR “Oesophageal neoplasm” OR “Oesophageal carcinoma” OR “Oesophageal malignant” OR “Esophagus cancer” OR “Esophagus tumor” OR “Esophagus neoplasm” OR “Esophagus carcinoma” OR “Esophagus malignant” OR “esophageal adenocarcinoma” OR “esophageal squamous cell carcinoma” (Topic).
Selection process
A total of 202 articles were extracted from Scopus, PubMed, and Web of Science databases, remaining 176 articles after removing duplicate articles. Then, 60 review articles and 102 unrelated articles were excluded from the collection of articles. Also, two articles with microarray analysis, and three non-English articles were excluded. In two articles, esophageal cancer tissue was examined along with some samples of other cancers, which were excluded. The initial screening was done based on the title and abstract of the articles by two reviewers (Jafari and Mahdizadeh) independently until February 2024. Afterward, the full text of the articles was reviewed according to the inclusion and exclusion criteria. Subsequently, each of the reviewers read all articles separately and finally shared their selected studies. If there were a difference of opinion in cases, such as articles with microarray analysis, they would reach an agreement by re-examining the article.
Data collection process
After identifying the final six studies, one reviewer read three of them in full, while another reviewer read the remaining three. Both reviewers worked independently. All the published reports and their tables and figures were studied and the desired information was extracted.
Quality assessment
Two distinct research experts assessed the quality level of the eligible studies utilizing the Cochran scoring methodology. This comprises seven criteria to gauge the risk of bias, which are as follows: random sequence generation, blinding of participants and staff, blinding of evaluators, allocation concealment, selective reporting, incomplete outcome data, and other probable biases.
Results
Study selection

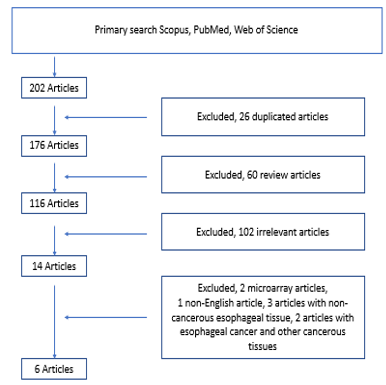

Eventually, relevant articles were reviewed and sorted for final analysis. Figure 1 represents the flow diagram for searching and extracting. Montgomery's study was published in 2006 (16) and Langbein's study was published in 2003 (17), which met the criteria for entering this systematic review, but the cancer samples in these studies were a collection of different types of tissues, including esophageal cancer. As a result, because the samples were not limited to esophageal cancer, they were excluded from our study.
Study characteristics
The main characteristics of the six selected studies are described in Table 1. Two studies were conducted two studies in Japan, two studies in South Korea, one studies in China, and one study in Finland. Studies were published between 2007 and 2022. Altogether, the number of esophageal cancer patients included in each study varied from 20 to 164. A total of 479 patients (401 ESCC and 78 esophageal carcinoma) were included in these studies. Also, TE5, TE8, TE10, TE11, Eca109, and A431 esophageal cancer cell lines were used in these studies.
Esophageal cancer is the eighth most prevalent cancer globally (1). There are two main histological subtypes of esophageal carcinoma: esophageal adenocarcinoma (EAC), originating from the columnar epithelia of the esophagus, and esophageal squamous cell carcinoma (ESCC), originating from the stratified squamous epithelia of the esophageal mucosa (2,3). The location of the tumor in the esophagus is different in EAC and ESCC subtypes (4). The ESCC, especially takes place in the proximal two-thirds of the esophagus, while EAC specifically occurs in the distal third of the esophagus (4). More than 90% of esophageal cancers in the world are of ESCC type and this cancer is mostly seen in countries with poor economic status and low income (2). The ESCC is associated with a poor prognosis, and its diagnosis usually occurs in the advanced stages of the disease (5). The incidence of EAC in Western countries has been increasing in recent decades (1). Despite advances in treatment and surgical techniques, the 5-year survival rate for EAC is 20.2% and 22.8% for ESCC (1). Considering the low survival rate in esophageal cancer patients, it is necessary to recognize the mechanisms of esophageal tumor progression (6).
Epithelial and endothelial cells form a protective barrier in the tissue and participate in maintaining homeostasis (7). The protective barrier requires proteins, including tight junction proteins, to function properly (8). Tight junctions (TJ) play a role in intercellular communication and cell polarity, maintenance of intercellular space in the epidermis, paracellular transport, and overall tissue maintenance (7,9,10). Components of TJ regulate gene expression, cell migration, and cell apoptosis by affecting signaling pathways (11). Studies show that TJ, in addition to maintaining the barrier function, is effective in the formation of various cancers (11).
Claudin family (CLDN) is one of the important structural and functional components of TJ (12). CLDNs are a family consisting of 27 genes, and CLDN proteins weigh approximately 20-27 kDa. They cross the cell membrane four times and their C-terminal and N-terminal are located in the cytoplasm (7,13). CLDNs have essential functions such as the barrier and the fence function (14). Also, they regulate cell adhesion, and their dysfunction (Upregulation or downregulation) is observed in tumorigenesis and cell invasion of different cancers (7,12,13).
CLDN-4 is a member of the claudin family and its gene is expressed in all human tissues (7). Its N-terminal is short and its C-terminal is variable length in different species and has approximately 27 amino acids. The cell membrane is connected to parts of the cytoskeleton through the C-terminal of the CLDN-4 (15). CLDN-4, as a regulator of tight junctions, is involved in the development of cancer and the invasion and cancer cell metastasis (12). This systematic review aims to investigate CLDN-4 changes in esophageal cancer. We aimed to investigate the effect of changes in the CLDN-4 gene and protein expression on cancer cells’ growth by reviewing the available studies.
Methods
Eligibility criteria
Inclusion criteria for this systematic review are as follows: Examination of gene expression or examination of CLDN-4 protein in esophageal cancer cell lines and esophageal tumor (Mostly EAC and ESCC) samples as well as investigating the effect and relationship of different markers on the level of CLDN-4. Exclusion criteria consist of Barrett's esophagus, gastroesophageal adenocarcinoma, gastrointestinal cancer, methylation of the CLDN gene or its promoter, microarray data analysis, microarray data analysis, other CLDN family genes, review articles, articles that did not have relevant and extractable information, animal studies, and non-English language studies.
Information sources
A total of 202 studies were obtained from searching the databases (PubMed (n = 12), Scopus (n = 177), and Web of Science (n = 13)), and after removing duplicate articles, 176 articles remained.
Search strategy
The systematic search was performed on February 13, 2024, according to the Preferred Reporting Items for Systematic Reviews and Meta-analysis (PRISMA) statement. In this systematic review, the search language in the databases was English. Search strategy in PubMed: ("CLDN4"(Title/Abstract) OR "CLDN 4"(Title/Abstract) OR "CLDN-4"(Title/Abstract) OR "Claudin4"(Title/Abstract) OR "Claudin 4"(Title/Abstract) OR "Claudin-4"(Title/Abstract)) AND ("Esophageal cancer"(Title/Abstract) OR "Esophageal tumor"(Title/Abstract) OR "Esophageal neoplasm"(Title/Abstract) OR "Esophageal carcinoma"(Title/Abstract) OR "Esophageal malignant"(Title/Abstract) OR "Oesophageal cancer"(Title/Abstract) OR "Oesophageal tumor"(Title/Abstract) OR "Oesophageal neoplasm"(Title/Abstract) OR "Oesophageal carcinoma"(Title/Abstract) OR "Oesophageal malignant"(Title/Abstract) OR "Esophagus cancer"(Title/Abstract) OR "Esophagus tumor"(Title/Abstract) OR "Esophagus neoplasm"(Title/Abstract) OR "Esophagus carcinoma"(Title/Abstract) OR "Esophagus malignant"(Title/Abstract) OR "esophageal adenocarcinoma"(Title/Abstract) OR "esophageal squamous cell carcinoma"(Title/Abstract)). Search strategy in Scopus: (TITLE-ABS-KEY ( "cldn" OR "CLDN 4" OR "CLDN-4" OR "claudin" OR "Claudin 4" OR "Claudin-4" ) AND TITLE-ABS-KEY ("Esophageal cancer" OR "Esophageal tumor" OR "Esophageal neoplasm" OR "Esophageal carcinoma" OR "esophageal malignant" OR "Oesophageal cancer" OR "Oesophageal tumor" OR "Oesophageal neoplasm" OR "Oesophageal carcinoma" OR "oesophageal malignant" OR "Esophagus cancer" OR "Esophagus tumor" OR "Esophagus neoplasm" OR "Esophagus carcinoma" OR "esophagus malignant" OR "esophageal adenocarcinoma" OR "esophageal squamous cell carcinoma"). Search strategy in Wen of Science: “CLDN4” OR “CLDN 4” OR “CLDN-4” OR “Claudin4” OR “Claudin 4” OR “Claudin-4” (Topic) AND “Esophageal cancer” OR “Esophageal tumor” OR “Esophageal neoplasm” OR “Esophageal carcinoma” OR “Esophageal malignant” OR “Oesophageal cancer” OR “Oesophageal tumor” OR “Oesophageal neoplasm” OR “Oesophageal carcinoma” OR “Oesophageal malignant” OR “Esophagus cancer” OR “Esophagus tumor” OR “Esophagus neoplasm” OR “Esophagus carcinoma” OR “Esophagus malignant” OR “esophageal adenocarcinoma” OR “esophageal squamous cell carcinoma” (Topic).
Selection process
A total of 202 articles were extracted from Scopus, PubMed, and Web of Science databases, remaining 176 articles after removing duplicate articles. Then, 60 review articles and 102 unrelated articles were excluded from the collection of articles. Also, two articles with microarray analysis, and three non-English articles were excluded. In two articles, esophageal cancer tissue was examined along with some samples of other cancers, which were excluded. The initial screening was done based on the title and abstract of the articles by two reviewers (Jafari and Mahdizadeh) independently until February 2024. Afterward, the full text of the articles was reviewed according to the inclusion and exclusion criteria. Subsequently, each of the reviewers read all articles separately and finally shared their selected studies. If there were a difference of opinion in cases, such as articles with microarray analysis, they would reach an agreement by re-examining the article.
Data collection process
After identifying the final six studies, one reviewer read three of them in full, while another reviewer read the remaining three. Both reviewers worked independently. All the published reports and their tables and figures were studied and the desired information was extracted.
Quality assessment
Two distinct research experts assessed the quality level of the eligible studies utilizing the Cochran scoring methodology. This comprises seven criteria to gauge the risk of bias, which are as follows: random sequence generation, blinding of participants and staff, blinding of evaluators, allocation concealment, selective reporting, incomplete outcome data, and other probable biases.
Results
Study selection
Eventually, relevant articles were reviewed and sorted for final analysis. Figure 1 represents the flow diagram for searching and extracting. Montgomery's study was published in 2006 (16) and Langbein's study was published in 2003 (17), which met the criteria for entering this systematic review, but the cancer samples in these studies were a collection of different types of tissues, including esophageal cancer. As a result, because the samples were not limited to esophageal cancer, they were excluded from our study.
Study characteristics
The main characteristics of the six selected studies are described in Table 1. Two studies were conducted two studies in Japan, two studies in South Korea, one studies in China, and one study in Finland. Studies were published between 2007 and 2022. Altogether, the number of esophageal cancer patients included in each study varied from 20 to 164. A total of 479 patients (401 ESCC and 78 esophageal carcinoma) were included in these studies. Also, TE5, TE8, TE10, TE11, Eca109, and A431 esophageal cancer cell lines were used in these studies.

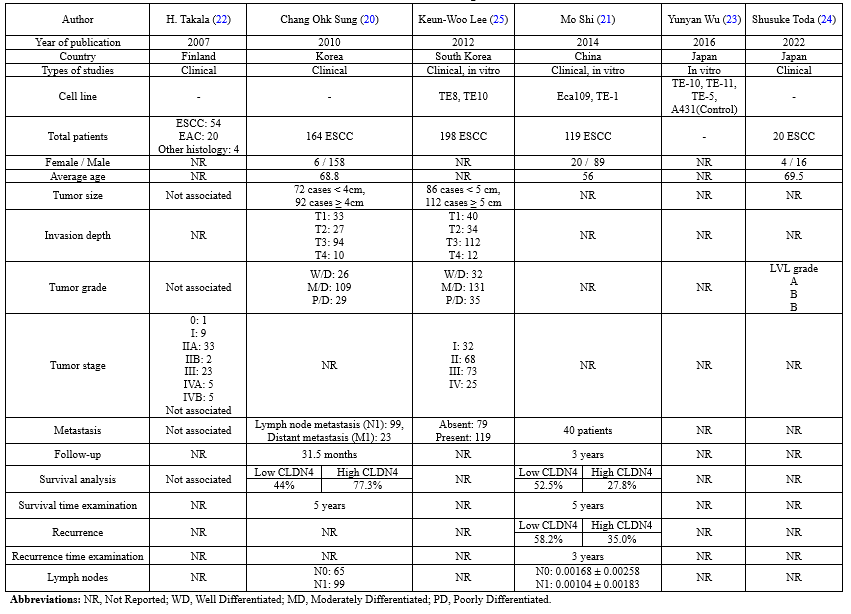

Table 1. Characteristics of the eligible studies.PNG) |
In one study, the P-value was considered < 0.001 and in the other studies, P-value was considered < 0.05. Five studies reported clinicopathologic parameters, such as length of the tumor, tumor stage, TNM Stage, TNM classification, tumor grade, histological grade, LVL grade, nodal status, and depth of invasion. Three studies reported survival analysis. In four studies, metastasis was investigated using terms, such as lymphatic metastasis, distant metastasis, and nodal metastasis. Additionally, one study reported on participants' smoking and alcohol consumption histories. The follow-up of esophageal cancer patients was published in two studies. Only one study monitored recurrence in esophageal cancer patients.
.PNG)
Discussion
Esophageal cancer has the 7th highest incidence rate and the 6th highest mortality rate among cancers, and there were about 544,000 deaths related to esophageal cancer in 2020. Despite the useful advances in drug treatment and surgical methods, the survival rate of patients is less than 25% (18). These statistics point to the need for more studies to understand the exact mechanism of this disease. Claudins as important members of TJ, are involved in maintaining epithelial cells in a polarized state (19). One of the members of this family is CLDN-4, whose expression changes have been reported in various cancers. Studies have been published so far to clarify the role of CLDN-4 in the progression of esophageal cancer, the pattern of CLDN-4 changes level, and the effect of various factors and genes on CLDN-4.
In normal squamous epithelium, Sung et al. observed strong CLDN-4 staining in cell-to-cell (IS; mean, 8.0 ± 2.739); however, cytoplasmic and nuclear staining was not observed. Staining in tumor samples was mainly membranous and 122 samples out of 164 patients had membrane staining (Mean IS, 2.533 ± 3.5). In general, immunoreactivity scores of CLDN-4 in the patient group were significantly lower than normal cases (Respectively 2.533 ± 3.5, 8.0 ± 2.739) (P-Value <0.001). According to the obtained results, it can be seen that the expression of CLDN-4 in esophageal cancer cells was lower than in normal cells. Spearman correlation coefficient showed a moderate positive correlation between CLDN-4 mRNA expression level and immunoreactivity scores (Spearman correlation coefficient (q) = 0.480, P-Value = 0.028) (20).
In 2014, Shi and colleagues investigated the role of CLDN-4 as an indicator of recurrence in ESCC after Ivor Lewis esophagectomy. In 119 patients, the level of CLDN-4 was examined by immunohistochemistry. Forty samples showed positive expression and 79 samples showed negative expression of CLDN-4. In 40 patients with positive expression of CLDN-4 protein, the CLDN-4 mRNA level was higher than in the other 79 patients. It can be concluded that in this study, the level of CLDN-4 was downregulated in most of the patients. Regarding invasion depth, it was observed that T1 group patients had the highest relative expression of CLDN-4 mRNA (0.00286 ± 0.00230). The relative expression of CLDN-4 decreased in T2 (0.00213 ± 0.00131) and T3+T4a (0.00177 ± 0.00083) patients, respectively (P-Value =0.002). According to these results, the decrease in the level of CLDN-4 leads to an increase in the depth of invasion.
Patients with lymphatic metastasis had significantly (P-Value < 0.001) lower relative expression of CLDN-4 mRNA than patients without lymphatic metastasis (0.00183 ± 0.00104 and 0.00258 ± 0.00168, respectively). The Kaplan-Meier survival analysis showed that 3-year recurrence in patients with decreased expression of CLDN-4 was higher than in patients with increased expression of CLDN-4 (58.2 Vs. 35.0%, P-Value = 0.009). Moreover, 5-year survival in patients with decreased CLDN-4 expression was lower than in patients with increased CLDN-4 expression (52.5 Vs. 27.8%, P-Value = 0.006) (21). These conflicting results show the importance of further studies on the level of CLDN-4 and the survival rate of patients.
Takala et al. stated that positive staining for CLDN-4 in normal epithelium is rare and CLDN-4 reactivity in esophageal cancer is more limited to the membrane. Immunohistochemical expression of CLDN-4 was observed in 47 out of 76 tumors. There was no significant correlation between CLDN-4 with tumor grade and tumor size and tumor T stage and metastasis (P-Value >0.05). They reported weak reactivity of CLDN-4 compared to CLDN-1 and CLDN-7 in esophageal tumors. In addition, CLDN-4 expression was higher in EAC samples than ESCC (42.1% and 18.9%, respectively). However, no significant difference was observed between strong and weak immunoreactivity of CLDN-4 in EAC and ESCC.
Apoptotic index in tumor samples with moderate and strong expression of CLDN-4 were significantly higher than samples with weak expression (2.22% ± 2.43 and 0.93% ± 0.95, respectively) (P-Value =0.026). Also, the number of caspases 3 was significantly higher in tumor samples with medium and strong expression of CLDN-4 than in samples with weak expression (4.51±5.08%, 2.81±2.34%) (P-Value =0.047) (22). The presence of CLDN-4 in esophageal cancer cells, compared to its absence in cancer cells, strengthens the apoptosis pathway and the factors involved. WU et al. investigated CLDN-4 gene expression in A431, TE-10, TE-11, and TE-5 cell lines. In the TE11 cell line, CLDN-4 expression was reported to be relatively low and Podoplanin (A glycoprotein with the ability to promote metastasis in all types of cancers) expression was strong by reverse transcription-quantitative polymerase chain reaction method. In this study, a negative correlation was observed between Podoplanin and CLDN-4.
When the cell lines were treated with TGF-β, Podoplanin expression was strongly induced but CLDN-4 expression was reduced. By blocking TGF-β receptors, they observed an increase in CLDN-4 expression. To better determine the relationship between these epithelial markers (CLDN-4), Podoplanin was knocked down and the result was an increase in CLDN-4 expression (23). It can be concluded that there is an inverse relationship between the level of CLDN4 and TGF-β. The reduction of CLDN-4 as a protein that plays a role in creating tight junctions was observed in these cell lines. Toda et al. investigated the expression of the CLDN-4 gene before and after exposure to acetaldehyde (AaH) and ethanol (EtOH) in esophageal cancer tumors. CLDN-4 mRNA level in non-exposed ESCC samples was lower than in non-ESCC samples (P-Value < 0.05).
After exposure of ESCC samples to AcH and EtOH, the CLDN-4 mRNA level tended to decrease (P-Value >0.05). CLDN-4 mRNA level after exposure to AcH and EtOH was not significantly different between LVL grades (P-Value > 0.05) (24). In this way, the expression of CLDN-4 in ESCC samples before exposure was significantly lower than in healthy samples. Since the results obtained after contact with ethanol and acetaldehyde were not significant, more studies with a larger population are needed to clarify the relationship of these compounds with CLDN-4 in esophageal cancer. In 2012, Lee et al. investigated the relationship between Twist1 and CLDN-4 in esophageal cancer cell lines and 198 patients with ESCC. When the expression of Twist1 was increased using lentivirus infection in the TE8 cell line, it binds to the endogenous CLDN-4 promoter and reduces the expression of CLDN-4. Further, the results also showed a decrease in CLDN-4 protein levels.
To investigate the inhibitory effect of Twist1 in the tumor tissue of patients with esophageal cancer, they used immunohistochemistry. Nineteen patients who had Twist1 upregulation had lower CLDN-4 immunoreactivity scores. CLDN-4 immunoreactivity scores were significantly higher in 179 patients who had Twist1 downregulation. Immunostaining results show inverse correlation patterns for Twist1 and CLDN-4. A significant inverse correlation between Twist1 and CLDN-4 was determined by Fisher's exact test (P-Value =0.012). In the study of survival rate, the worst result significantly belonged to patients with low CLDN-4 and high Twist1 (25). So, in this study, 179 patients had higher CLDN-4 protein in the esophageal tumor tissue than 19 other patients. Twist1 can lead to the induction of cancer by inducing epithelial to mesenchymal transition, i.e. reducing epithelial characteristics and increasing mesenchymal characteristics. The results of this study were not consistent with this assumption and only 19 patients out of 179 patients had positive regulation of Twist1 and most patients had upregulation of CLDN-4. No risk of bias or applicability concern was found in the reference standard domain, and the flow and timing domain. Limitations of this systematic review, such as sample size and small number of studies including inclusion criteria, provide an opportunity for future clinical research to understand the role of CLDN-4 in esophageal cancer formation and progression.
Conclusion
The results obtained from the published studies regarding changes in CLDN-4 levels among esophageal cancer samples and also comparing it with normal tissue were contradictory. From the review of studies, it can be concluded that there is an inverse relationship between CLDN-4 and TGF-β levels, and more information is needed to clarify the effect of TGF-β signaling on CLDN-4. Also, an inverse relationship between CLDN-4 and Twist-1 levels has been observed. These conflicting results can be interpreted in several ways. Assuming that cell junctions are destroyed in the formation of tumors, we can expect a decrease in CLDN-4 in esophageal cancer samples, which has been mentioned in some studies. On the other hand, CLDN-4 can be involved in carcinogenesis by affecting different signaling pathways.
Acknowledgement
This study was supported by Golestan University of Medical Sciences by grant number 114252 and ethical code IR.GOUMS.REC.1403.249.
Funding sources
The authors declare that no funds, grants, or other support were received during the preparation of this manuscript.
Ethical statement
Not applicable.
Conflicts of interest
The authors declare that they have no competing interests.
Author contributions
Jafari and Arab designed the research and edited the manuscript. The search in databases was done by Jafari and Mahdizadeh. The manuscript was written by Mahdizadeh. All authors read and approved the final manuscript.
Type of Article: Systematic Review and Meta Analysis |
Subject:
Basic Medical Sciences
Received: 2024/04/2 | Accepted: 2024/06/8 | Published: 2024/12/29
Received: 2024/04/2 | Accepted: 2024/06/8 | Published: 2024/12/29
References
1. Moentenich V, Gebauer F, Comut E, Tuchscherer A, Bruns C, Schroeder W, et al. Claudin 18.2 expression in esophageal adenocarcinoma and its potential impact on future treatment strategies. Oncol Lett. 2020;19(6):3665-70. [View at Publisher] [DOI] [PMID] [Google Scholar]
2. Liu J, Niu Y, Zhang B, Sun Q, Li H, Bai L, et al. Different Expression Pattern of G Protein-Coupled Estrogen Receptor GPER1 in Esophageal Squamous Cell Carcinoma and Adenocarcinoma. Int J Mol Sci. 2023;24(18):14055. [View at Publisher] [DOI] [PMID] [Google Scholar]
3. Arshad HMS, Farooq U, Cheema A, Arshad A, Masood M, Vega KJ, et al. Disparities in esophageal cancer incidence and esophageal adenocarcinoma mortality in the United States over the last 25-40 years. World J Gastrointest Endosc. 2023;15(12):715-24. [View at Publisher] [DOI] [PMID] [Google Scholar]
4. Li Y, Wang JX, Yibi RH. Prediction of lymph node metastasis in early esophageal cancer. World J Gastrointest Surg. 2023;15(10):2294-304. [View at Publisher] [DOI] [PMID] [Google Scholar]
5. Lin C, Xin S, Qin X, Li H, Lin L, You Y, et al. Zoledronic acid suppresses metastasis of esophageal squamous cell carcinoma cells through upregulating the tight junction protein occludin. Cytotechnology. 2016;68(4):1233-41. [View at Publisher] [DOI] [PMID] [Google Scholar]
6. Huang S, Zhang J, Li Y, Xu Y, Jia H, An L, et al. Downregulation of Claudin5 promotes malignant progression and radioresistance through Beclin1-mediated autophagy in esophageal squamous cell carcinoma. J Transl Med. 2023;21(1):379. [View at Publisher] [DOI] [PMID] [Google Scholar]
7. Kim WS, Kim H, Joo MK, Choi BI, Yoo AY, Park JJ, et al. High Expression of Claudin-4 Is Associated with Synchronous Tumors in Patients with Early Gastric Cancer. J Clin Med. 2022;11(12):3550. [View at Publisher] [DOI] [PMID] [Google Scholar]
8. Torres-Martínez AC, Gallardo-Vera JF, Lara-Holguin AN, Montaño LF, Rendón-Huerta EP, et al., Claudin-6 enhances cell invasiveness through claudin-1 in AGS human adenocarcinoma gastric cancer cells. Exp Cell Res. 2017;350(1):226-35. [View at Publisher] [DOI] [PMID] [Google Scholar]
9. Morita K, Sasaki H, Furuse M, Tsukita S, et al. Endothelial claudin: claudin-5/TMVCF constitutes tight junction strands in endothelial cells. J Cell Biol. 1999;147(1):185-94. [View at Publisher] [DOI] [PMID] [Google Scholar]
10. Alshbool FZ, Mohan S. Differential expression of claudin family members during osteoblast and osteoclast differentiation: Cldn-1 is a novel positive regulator of osteoblastogenesis. PLoS One. 2014;9(12):e114357. [View at Publisher] [DOI] [PMID] [Google Scholar]
11. Ishii D, Shindo Y, Arai W, Konno T, Kohno T, Honda K, et al. The Roles and Regulatory Mechanisms of Tight Junction Protein Cingulin and Transcription Factor Forkhead Box Protein O1 in Human Lung Adenocarcinoma A549 Cells and Normal Lung Epithelial Cells. Int J Mol Sci. 2024;25(3):1411. [View at Publisher] [DOI] [PMID] [Google Scholar]
12. Chai J, Liu X, Hu X, Wang C. Correlation analysis of circulating tumor cells and Claudin-4 in breast cancer. Pathol Oncol Res. 2023;29:1611224. [View at Publisher] [DOI] [PMID] [Google Scholar]
13. Yang L, Zhang W, Li M, Dam J, Huang K, Wang Y, et al. Evaluation of the Prognostic Relevance of Differential Claudin Gene Expression Highlights Claudin-4 as Being Suppressed by TGFβ1 Inhibitor in Colorectal Cancer. Front Genet. 2022;13:783016. [View at Publisher] [DOI] [PMID] [Google Scholar]
14. Soini Y, Pirinen R, Takasawa K, Osanai M, Takasawa A, et al. Claudin 6 is associated with a short survival and a short recurrent free interval in non-small cell lung carcinoma. Pol J Pathol. 2022;73(1):1-5. [View at Publisher] [DOI] [PMID] [Google Scholar]
15. Neville MC, Webb PG, Baumgartner HK, Bitler BG. Claudin-4 localization in epithelial ovarian cancer. Heliyon. 2022;8(10):e10862. [View at Publisher] [DOI] [PMID] [Google Scholar]
16. Montgomery E, Mamelak AJ, Gibson M, Maitra A, Sheikh S, Amr SS, et al. Overexpression of claudin proteins in esophageal adenocarcinoma and its precursor lesions. Appl Immunohistochem Mol Morphol. 2006;14(1):24-30. [View at Publisher] [DOI] [PMID] [Google Scholar]
17. Langbein, L, Pape UF, Grund C, Kuhn C, Praetzel S, Moll I, et al., Tight junction-related structures in the absence of a lumen: occludin, claudins and tight junction plaque proteins in densely packed cell formations of stratified epithelia and squamous cell carcinomas. Eur J Cell Biol. 2003;82(8):385-400. [View at Publisher] [DOI] [PMID] [Google Scholar]
18. Christodoulidis G, Koumarelas KE, Kouliou MN. Pivotal role of exosomes in diagnosis and treatment of esophageal cancer in a new era of precision medicine. World J Methodol. 2024;14(1):90624. [View at Publisher] [DOI] [PMID] [Google Scholar]
19. Zhu J, Jiang Q. Twist1‑mediated transcriptional activation of Claudin‑4 promotes cervical cancer cell migration and invasion. Oncol Lett. 2023;26(2):335. [View at Publisher] [DOI] [PMID] [Google Scholar]
20. Sung CO, Han SY, Kim SH. Low expression of claudin-4 is associated with poor prognosis in esophageal squamous cell carcinoma. Ann Surg Oncol. 2011;18(1):273-81. [View at Publisher] [DOI] [PMID] [Google Scholar]
21. Shi M, Wang Z, Song L, Wang D, Sun Z. Low expression of claudin-4: an indicator of recurrence in esophageal squamous cell carcinoma after Ivor Lewis esophagectomy? Med Oncol. 2014;31(5):951. [View at Publisher] [DOI] [PMID] [Google Scholar]
22. Takala H, Saarnio J, Wiik H, Soini Y. Claudins 1, 3, 4, 5 and 7 in esophageal cancer: loss of claudin 3 and 4 expression is associated with metastatic behavior. APMIS. 2007;115(7):838-47. [View at Publisher] [DOI] [PMID] [Google Scholar]
23. Wu Y, Liu Q, Yan X, Kato Y, Tanaka M, Inokuchi S, et al. Podoplanin-mediated TGF-β-induced epithelial-mesenchymal transition and its correlation with bHLH transcription factor DEC in TE-11 cells. Int J Oncol. 2016;48(6):2310-20. [View at Publisher] [DOI] [PMID] [Google Scholar]
24. Toda S, Hatta W, Asanuma K, Asano N, Ono Y, Abe H, et al., Decreased Expression of NRF2 Target Genes after Alcohol Exposure in the Background Esophageal Mucosa of Patients with Esophageal Squamous Cell Carcinoma. Tohoku J Exp Med. 2022;258(3):195-206. [View at Publisher] [DOI] [PMID] [Google Scholar]
25. Lee KW, Lee NK, Kim JH, Kang MS, Yong Yoo H, Kim HH, et al. Twist1 causes the transcriptional repression of claudin-4 with prognostic significance in esophageal cancer. Biochem Biophys Res Commun. 2012;423(3):454-60. [View at Publisher] [DOI] [PMID] [Google Scholar]
